DFL Toolhead

A custom 3D printer toolhead designed with one goal: a carriage machinable out of aluminum for maximum rigidity, rather than the printed carriages most toolheads rely on.

DFL Toolhead detail render, hotend and fan assembly

The carriage is machined from 6061 aluminum; the remaining parts are CF-ABS or resin-printed as needed. Everything is built to be modular and easily swapped.

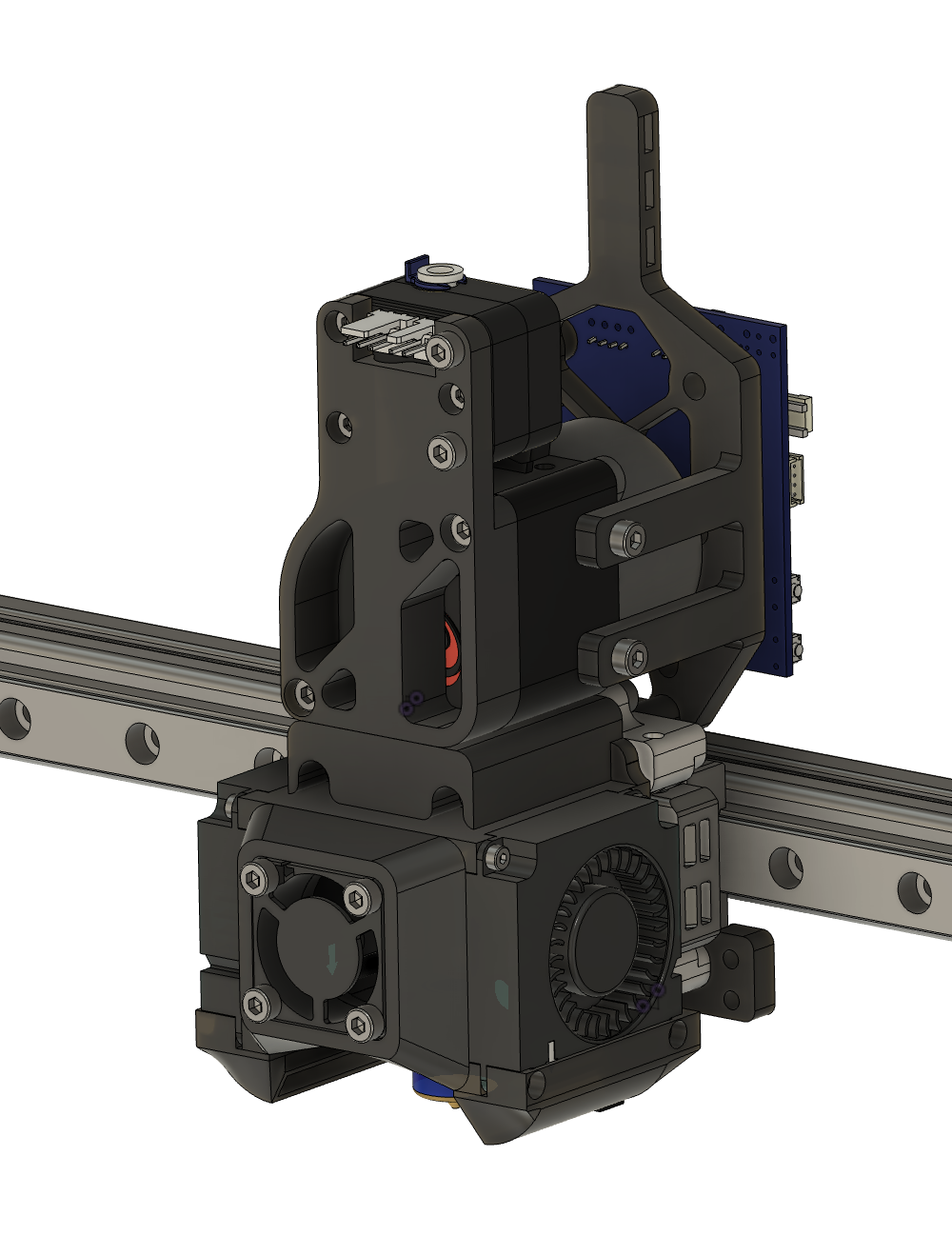

DFL Toolhead V1 render

Features

  • 6061 aluminum-machined carriage for rigidity
  • CF-ABS / resin-printed secondary components
  • Two 4010 blower fans for part cooling, one 2510 fan for hotend cooling
  • Duet 3 Toolboard 1LC, CAN-connected
  • Bondtech Lite Pro extruder
  • Duet magnetic filament sensor
  • Revo heatercore and nozzles
  • Euclid probe
  • Fully modular, swappable components

Machining

V1 achieves the rigidity goal but is machining-intensive - it takes many operations to produce, though it’s doable. A V2 is planned to keep the rigidity while making the carriage easier to machine.

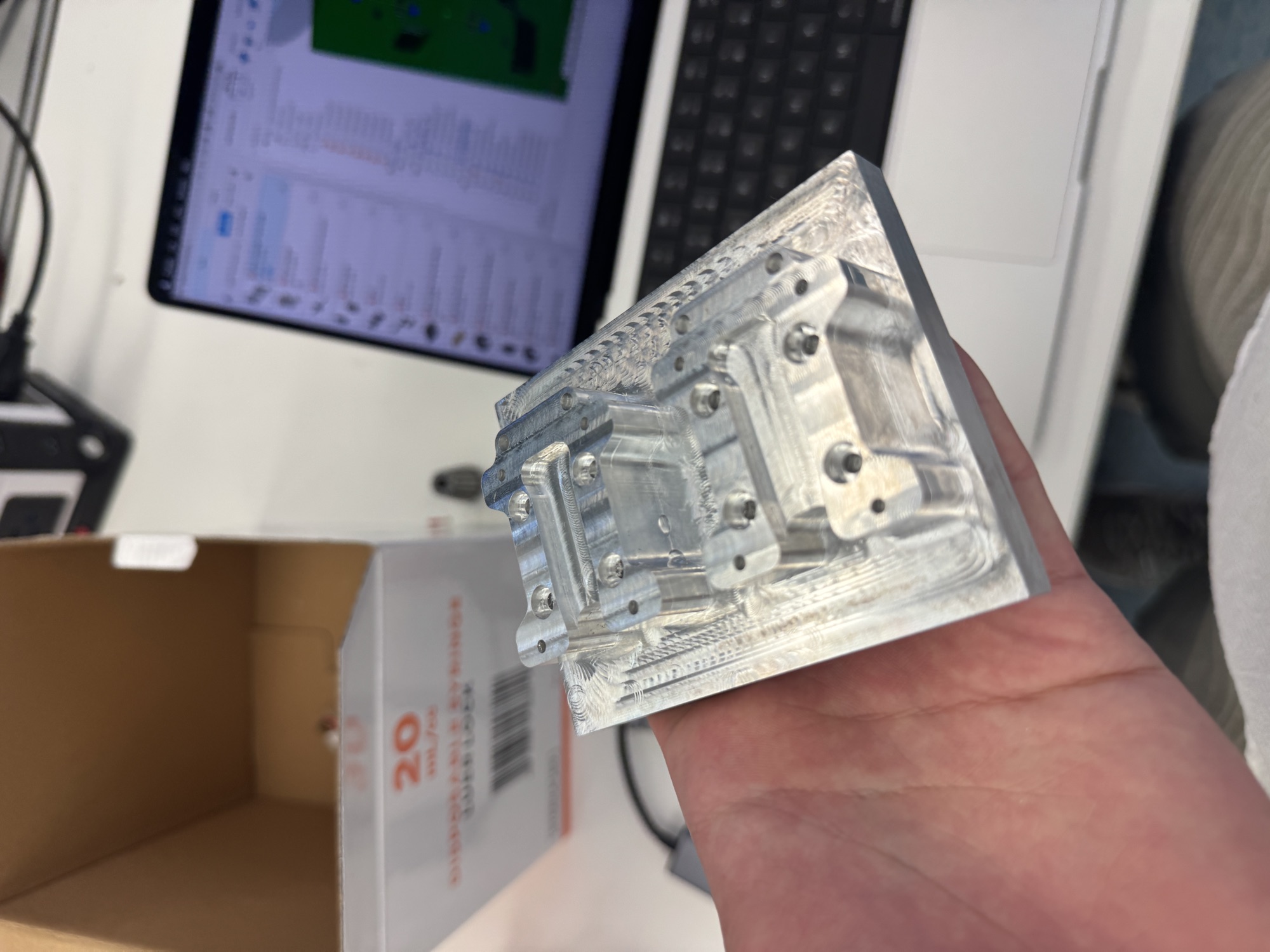

Machined 6061 aluminum carriage, held in hand

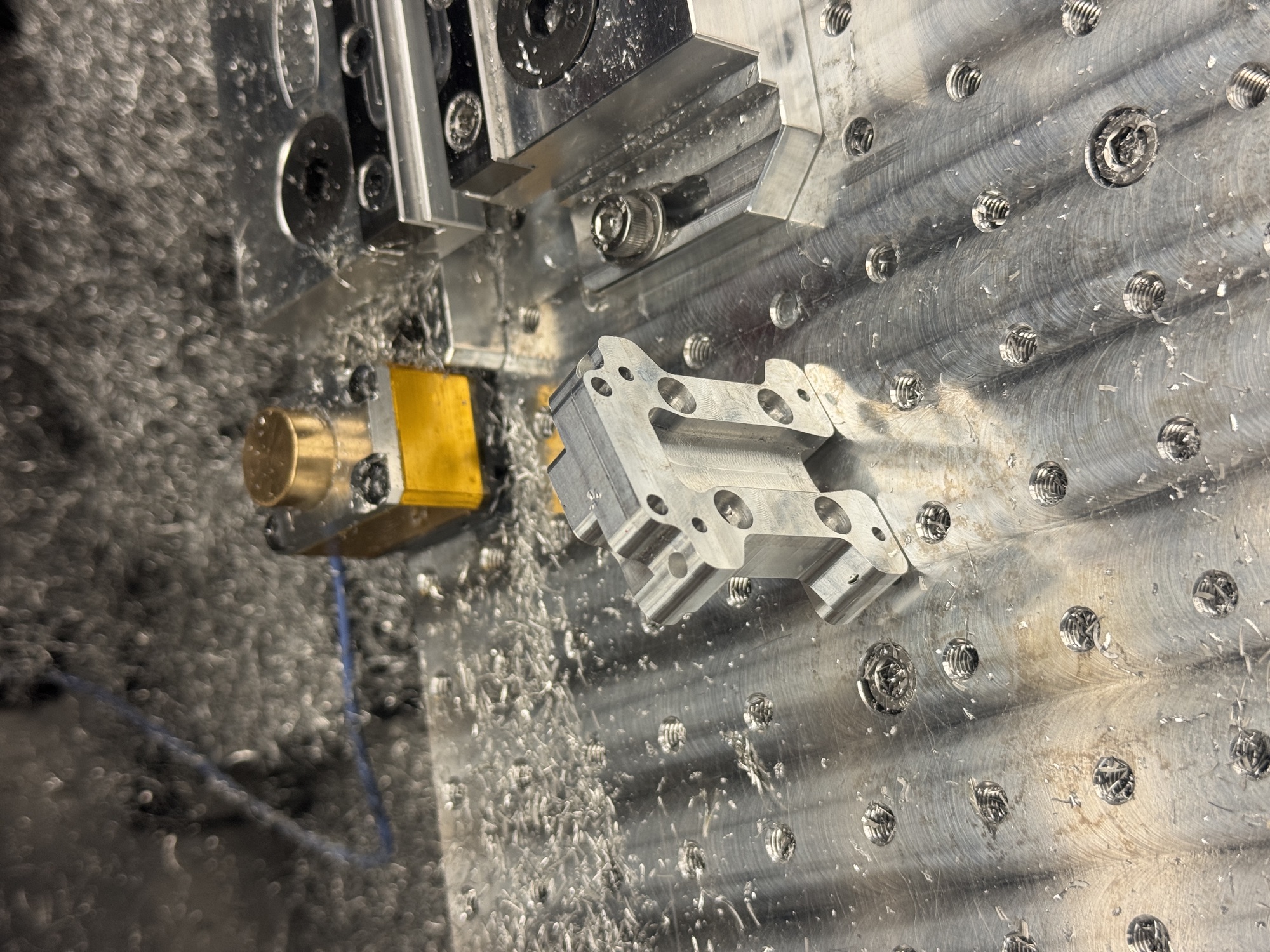

Carriage mid-machining on the CNC bed
